Product Description:

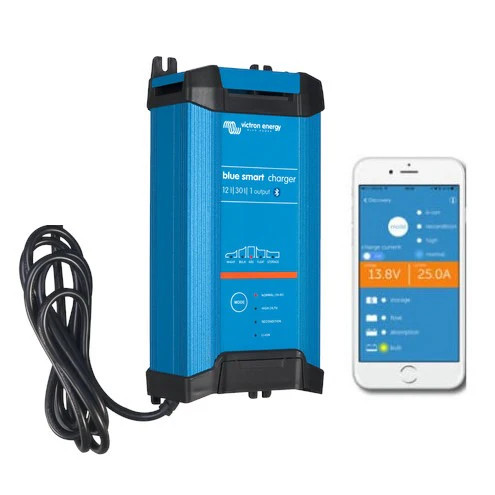

The Blue Smart IP22 Charger is a professional-grade battery charger with built-in Bluetooth. Suitable for workshops, cars, motorbikes, boats and campervans, it delivers efficient adaptive charging while allowing full wireless monitoring and configuration.
With up to 94% efficiency and an adaptive 6-stage charging algorithm, the IP22 maximises battery health and lifespan. It can even recover fully discharged batteries, including Li-ion types with internal disconnect.
Key Features & Benefits:
-
Bluetooth Smart – monitor voltage/current, change settings and update firmware wirelessly
-
High efficiency – up to 94%, with ultra-low standby consumption (0.5W)
-
Adaptive 6-stage charging – test, bulk, absorption, recondition, float, storage
-
Programmable algorithms – adjust absorption, float, storage and recondition via app (Expert Mode unlocks full control)
-
Storage mode – reduces float voltage to limit corrosion and extend battery life
-
Li-ion compatible – supports bulk, absorption and float charging profiles
-
Battery recovery – recharges fully discharged batteries from 0V
-
Night & Low modes – reduced current output, totally silent operation
-
Overheat protection – output reduced at higher temperatures, continues to function up to 50°C
-
Status indication – 11 LED display with selectable modes (Normal, High, Recondition, Li-ion)
-
History log – stores data for the last 40 charge cycles
-
VE.Smart Networking – sync multiple Victron devices via Bluetooth for optimised charging
-
Parallel charging – synchronise up to 10 chargers for redundancy, flexibility and higher output
Specifications:
-
Model: Blue Smart IP22
-
System Voltage: 12V
-
Charge Current: 15A / 20A / 30A (model dependent)
-
Input Voltage: 230V AC
-
Efficiency: up to 94%
-
Communication: Bluetooth Smart & VE.Smart networking
-
Operating Temperature: -20°C to +50°C (derates above 40°C)
-
Protection: Over-temperature, reverse polarity, short circuit
-
Modes: Normal (14.4V), High (14.7V), Recondition, Li-ion
-
History Log: Last 40 charge cycles
-
Dimensions: approx. H235 x W108 x D65mm (varies by model)
-
Weight: 1.3–1.5kg (model dependent)
-
Mounting: Indoor (IP22)
